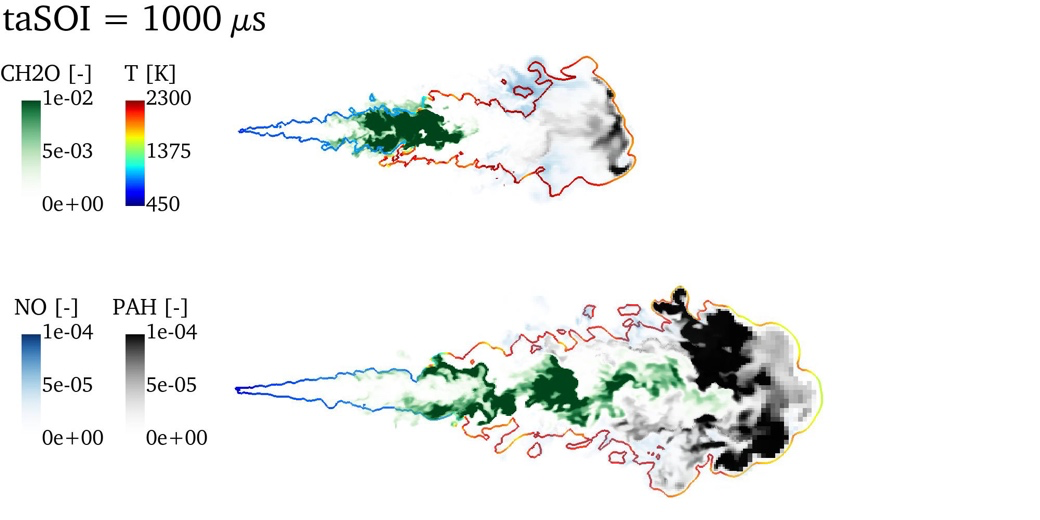

Figure 1: The structure of the ECN Spray A (top) and ECN Spray D (bottom) from mixture formation to gaseous pollutant formation. The contour denotes stoichiometric conditions color-coded by the temperature.
